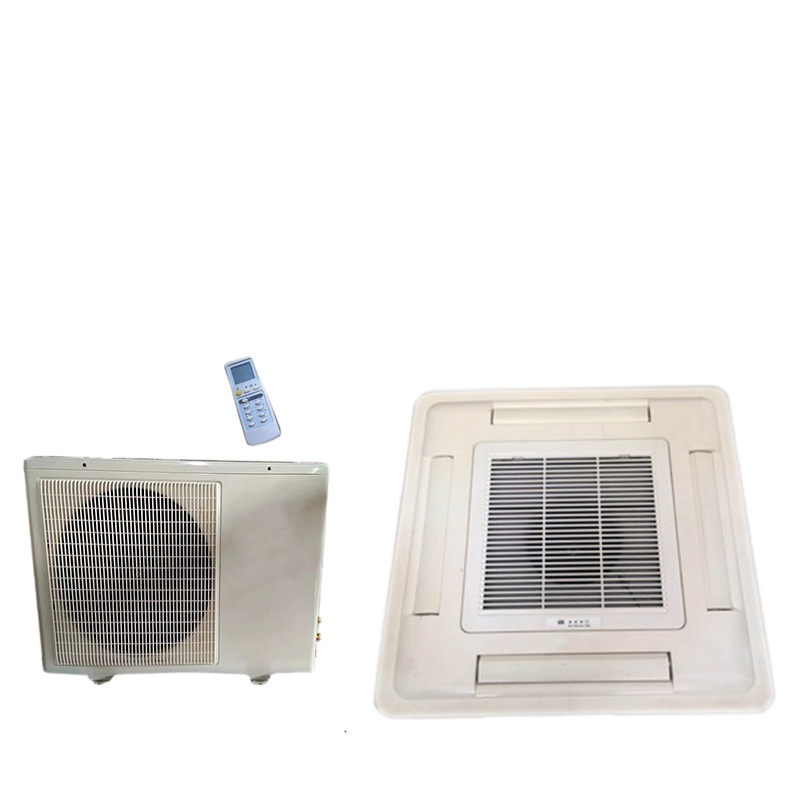

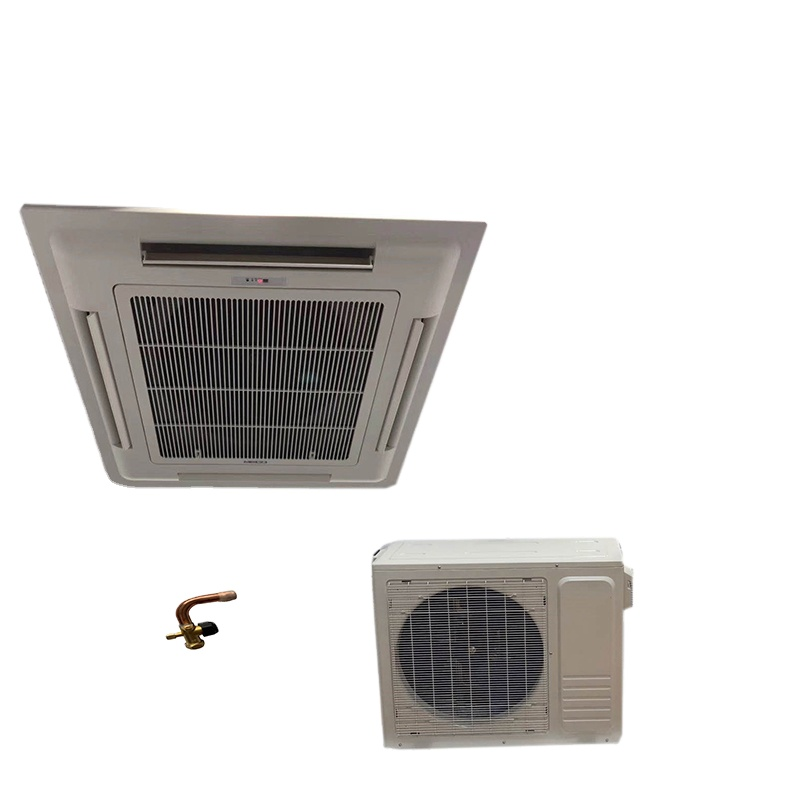

Best Quality Light Commercial Unit Cassette Type Air Conditioner
Product parameters
| Model | YCA-36HRFN1 |
| Average | Pdesignc | kW | 10.5 |
| SEER | W/W | 6.1 |
| Energy Efficiency Class | | A++ |
| Pdesignh | kW | 9.9 |
| SCOP | W/W | 4.0 |
| Energy Efficiency Class | | A+ |
| Warmer | Pdesignh | kW | 10.5 |
| SCOP | W/W | 5.1 |
| Energy Efficiency Class | | A+++ |
| Power supply (Indoor ) | V,Hz,Ph | 220~240,50,1 |
| Power supply (Outdoor ) | V,Hz,Ph | 220~240,50,1 |
| Cooling | Capacity | Btu/h | 36000(10000-41000) |
| Capacity | kW | 10.55(2.93-12.02) |
| Input | W | 4060(975-4620) |
| Current | A | 18.5(4.2-20.1) |
| Heating | Capacity | Btu/h | 38000(9000-45000) |
| Capacity | kW | 11.13(2.64-13.19) |
| Input | W | 3085(880-4690) |
| Current | A | 13.4(3.8-20.4) |
| Indoor unit | Dimension (W x Dx H)(body) | mm | 840x840x245 |
| Packing (W x Dx H)(body) | mm | 900x900x257 |
| Dimension (W x Dx H)(panel) | mm | 950x950x55 |
| Packing (W x Dx H)(panel) | mm | 1035x1035x90 |
| Net/Gross weight(body) | kg | 25.6/29.6 |
| Net/Gross weight | kg | 5/8 |
| Operation temperature | ºC | 17~30 |
| Room temperature | Cooling | ºC | 17~32 |
| Heating | ºC | 0~30 |
Product Description
(1) Elegant panel design, with remote control.
(2) Galvanized outdoor unit or plastic outdoor unit for
anti-corrosion
(3) Wide voltage display:187V-240V
(4) Cooling or cooling and heating are available
(5) 18000BTU,24000BTU,36000BTU,48000BTU,60000BTU.
(6) More than 10 meters remote control distance
(7) Flat panel for easy cleaning,washable plastic filter and
horizontal auto louver
(8) Completely white colour panel.
(9) 50/60HZ and T1 ambient/T3 ambient for option
(10) option for auto restart function
Why choose our products
1. The Famous /Original compressor
2. The quality pure copper pipe
3. The Use Vortex centrifugal fan to make Air flow with high
efficiency and Low noise
4. The special Filter Screen To filter the dust and smoke in the
air; To Extend the cleaning cycle
5. The sleeping control switch shall give you a perfect sleeping
night by reducing the air flow step by step till morning coming
