Low Noise ABS Panel Commercial Cool Ac Cassette Light Commercial Air Conditioner

Ask Lasest Price
Brand Name :	DELTA
Model Number :	Air conditioning Cassette type
Certification :	ISO9001
Price :	Negotiate
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	10000 sets/monmth
Delivery Time :	15-20dys

Add to Cart

Product Details
Company Profile

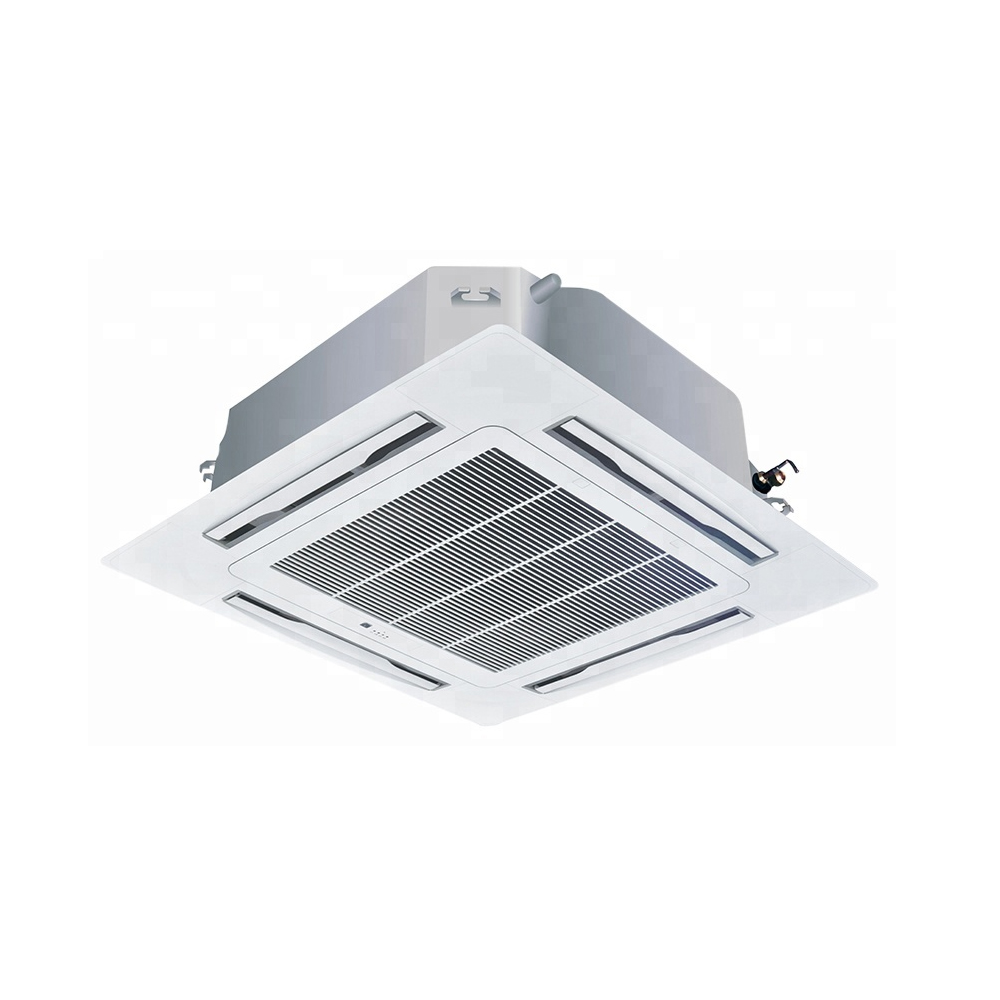

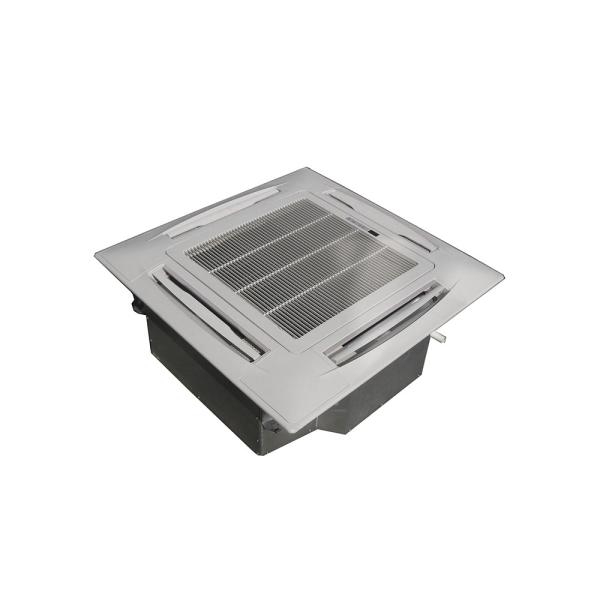

Low Noise ABS Panel Commercial Cool Ac Cassette Light Commercial Air Conditioner

Low Noise Ceiling Mounted Air Conditioner/Air conditioning Cassette Type

Product Description

1. ABS panel .

2. Centrifugal blower .
3. Motor ,Class E , three speeds , motor surface spray painting, good corrosion resistance,fully sealed, permanently sealed and lubricated ball bearings .
4. Coil ,the copper tube is mechanically expanded to ensure close contact with the aluminum fins, high heat transfer efficiency. Strong corrosion resistance. All coils are qualified by 2.4 Mpa pressure leak detection.
5. Configured with drain pump.

Remark:

1. Cooling testing condition return air dry ball/wet ball temperature 27℃/19.5℃ ,chilled water inlet temperature 7℃ , chilled water outlet temperature 12 ℃.

2. Heating testing condition return air dry ball temperature 21 ℃ ,hot water inlet temperature 60℃, hot water outlet temperature 50 ℃.

Product Parameters
Model		FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204	FP-238
Air current indoorm³/h	High	510	680	850	1020	1360	1700	2040	2380
	Middle	420	580	700	740	1150	1400	1650	2000
	Low	210	420	520	620	840	1050	1250	1480
Cooling Capacity(W)		3000	3800	4900	5800	7000	9800	11000	1200
Heat(W)		4700	5900	7600	9000	10900	15200	17100	18600
Wind turbines form
Noise(db)		36/33/31	39/38/34	45/43/41	45/43/41	47/42/36	50/47/42	50/4742	50/47/43
Alternator type
Number of motors		1	1	1	1	1	1	1	1
Power		220V-50HZ
W Power Consumption		30	45	70	90	128	154	180	200
coil pipe	Model
coil pipe	working pressure
Joint pipe
Water resistance(kPa)		20	20	20	20	24	30	35	40
Drain size		φ26
Panel external diameter		65065030		95095066
Unit dimensions		585585250		840840225			840840290
Unit weight		23	23	24	27	27	30	30	30
Noted: FP-51,FP-68 The air conditioner blows on all sides, FP-85,FP-102,FP-136,FP-170,FP-204,FP-238 Air comes out on eight sides of the air conditioner
Due to the product improvement, the above parameters may be changed, the name brand parameters of the product shall prevail
