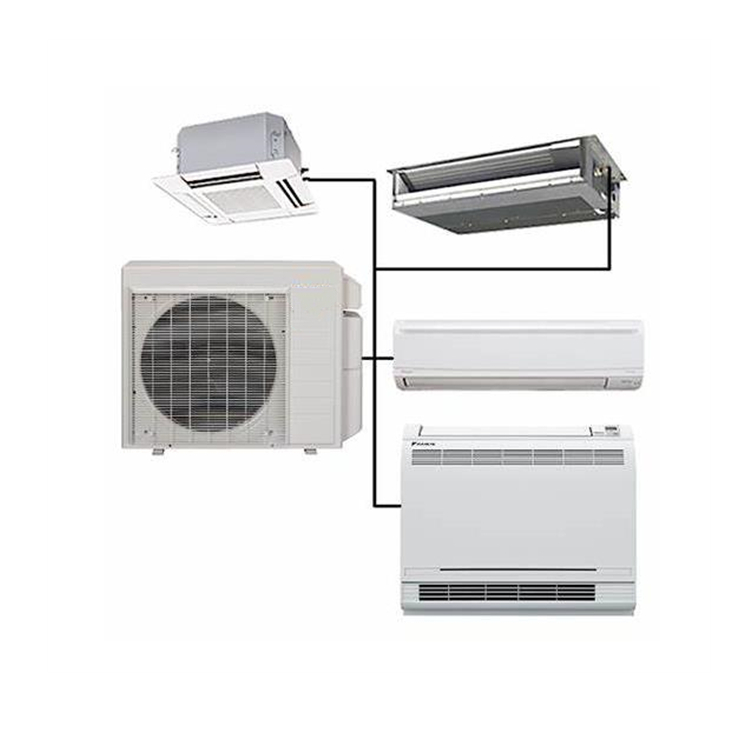

Multi Split Air Conditioner With Details Parameter

Our Advantages

1.The total pipe length: 1000 m.
2.The longest pipe length: 200 /240m.
3.Height deference:Outdoor unit. Above<90m<90m.

4.Outdoor unit below<110m.
5.Height difference between indoor units: 30m.
6.Length from first indoor distributor to last indoor unit 90 m.
7.Communication wire length can be upto 1000m.

Specification

Type			Mini VRF	Large VRF
Capacity		HP	3HP-12HP	8HP-22HP
Power supply		V/Ph/Hz	220-240V/1PH/50Hz 208-230V/1PH/60Hz 380-415V/3PH/50Hz & 60Hz	208-230V/3PH/60Hz 380-415V/3PH/50Hz & 60Hz
Cooling	Capacity	kW	8KW~33.5KW	25.2KW-61.5KW
		kBtu/h	27.3-60kBtu/h	86-209.8kBtu/h
	Power input	kW	5.78-14.4KW	17-27.65KW
	EER	kW/kW	3.32-3.69	3.02-4.72
Heating	Capacity	kW	9KW-37.5KW	27.4KW-69KW
		kBtu/h	92-191kBtu/h	215-341kBtu/h
	Power input	kW	5.41-14KW	15.8-26.08KW
	COP	kW/kW	3.56-4.27	4.11-5.5
Comperssors	Type	-	DC inverter
Fan motors	Type	-	DC inverter
	Max.ESP	Pa	85	85
Refrigerant	Type		R410A
Aiflrow rate		m³/h	3300-8000	15000-17000
		dB(A)	45-60	58-63
Ambient temp	Cooling	℃	-5-50℃	-5-55℃
	Heating	℃	-20-30℃	-30-30℃

CONTROLLERS AND SOFTWARE

SIMPLIFY CENTRALIZED CONTROLLER

Easy to install.Controller connects to outdoor units only.
1 Controller can control max. 100 indoor units.
Operation mode restriction
Error or protection code display
Can control single unit or all units together
